UNRE UCL360 PRO シリーズは、建築・製造・インフラなど幅広い分野に対応するプロ向け高精度3Dレーザースキャナーです。PRO 100（スキャン距離100m）とPRO 200（200m）の2モデルを展開し、距離計測精度±1.5mm@10m、角度計測精度≤3’’を実現。水平360°・垂直290°の広視野角、5インチIPSタッチスクリーン、12MPカメラ、1TB大容量ストレージ、IP54対応。UNRE VORTEX（App・Client・Cloud・Plugin）との連携で、リアルタイムスキャン・自動レジストレーション・Scan-to-BIM処理が可能。多彩な出力フォーマットでAutoCAD・Revit等との高い互換性を確保します。

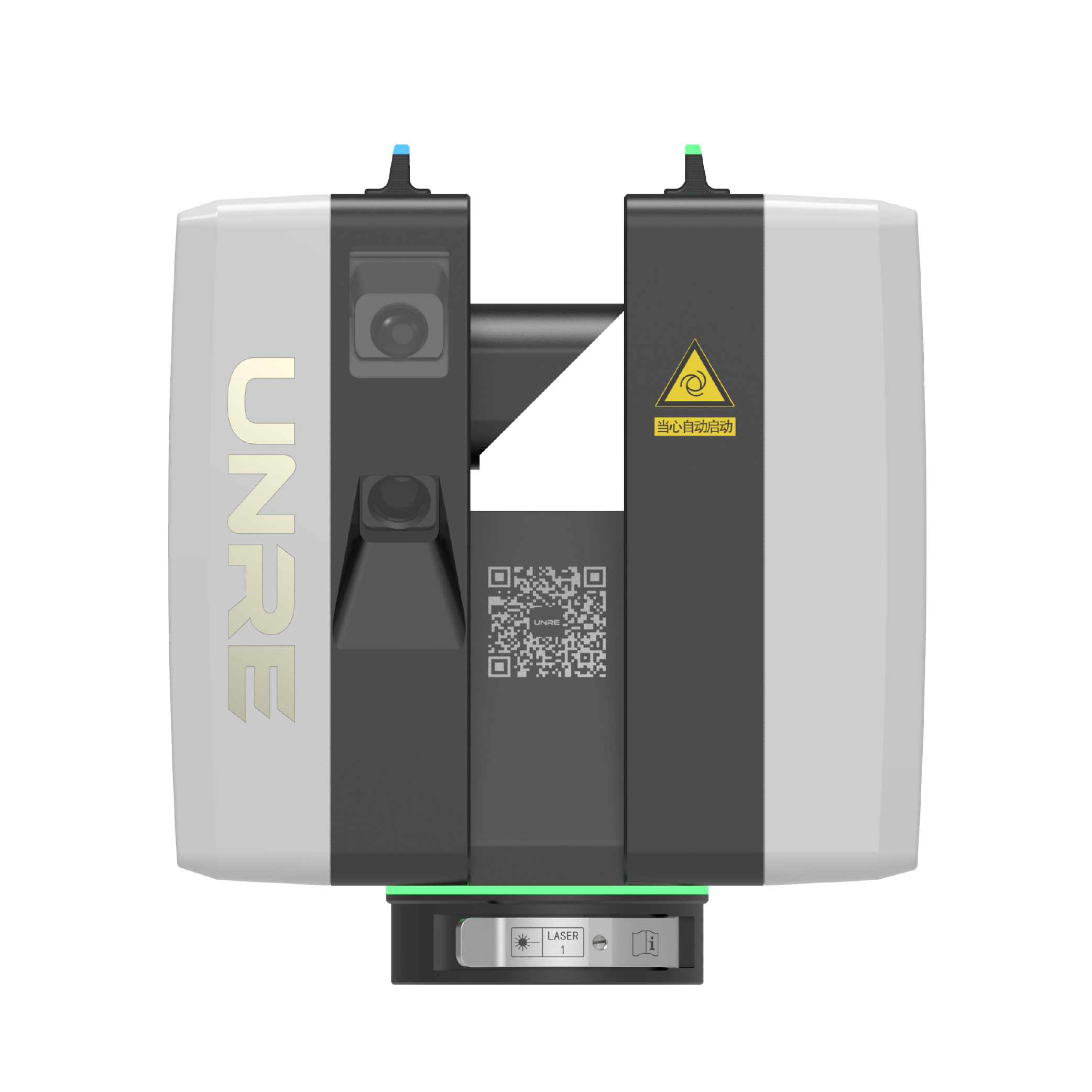

UNRE UCL360 PRO Series 3D Laser Scanner — High-Precision Scanning Solutions for Professional Applications

The UNRE UCL360 PRO Series is a professional-grade 3D laser scanner designed for high-precision measurement across diverse industrial and architectural applications. Available in two models, the UCL360 PRO 100 (100m scanning range) and UCL360 PRO 200 (200m scanning range), these scanners deliver exceptional accuracy and efficiency for demanding work environments.

Key Features:
- High angular measurement accuracy: ≤3’’
- Range measurement accuracy: ±1.5mm @ 10m
- Field of view: Horizontal 360°, Vertical 290°
- Built-in 12MP fisheye camera + three 12MP cameras (4056×3040 pixels each)
- 5" IPS touchscreen display (720×1280), 16GB RAM
- 1TB built-in high-speed EMMC storage, expandable via USB
- IEEE 802.11 ac/a/b/g/n 2×2 MIMO Wi-Fi, USB 3.0
- 6700mAh rechargeable Li-ion battery (24V adapter supported)
- IP54 protection, operating temperature: +5°C to +40°C
- Dimensions: 228×120×253mm, Weight: 4.0kg (4.5kg with battery)

Powered by the UNRE VORTEX software ecosystem — including VORTEX App (iOS ＆ Android), VORTEX Client (PC), VORTEX Cloud, and VORTEX Plugins for AutoCAD and Revit — the UCL360 PRO Series enables real-time scanning, automatic point cloud registration, and seamless Scan-to-BIM workflows in as little as 3 minutes. Supporting multiple export formats (DWG, DXF, PTS, etc.), it ensures full compatibility with mainstream 3D design and analysis software.

UNRE 360 Nanoは、現場計測に特化したコンパクト・軽量な3Dレーザースキャナーです。レーザー波長905nm（IEC 60825-1:2014準拠、人眼安全クラス1）、実測スキャン範囲0.5〜45m、視野角：水平360°・垂直305°、測距精度：4mm@10m・7mm@20m。256GBストレージ、USB 3.0インターフェース搭載。動作温度0〜40°C、単電池動作時間1.5時間、本体サイズ≤152×145×90mm、重量≤1.5kg（電池除く）。UNRE VORTEXソフトウェアと連携し、ポイントクラウドの処理・可視化・各種フォーマット出力に対応。建築計測・品質検査・現況図作成に最適な一台です。

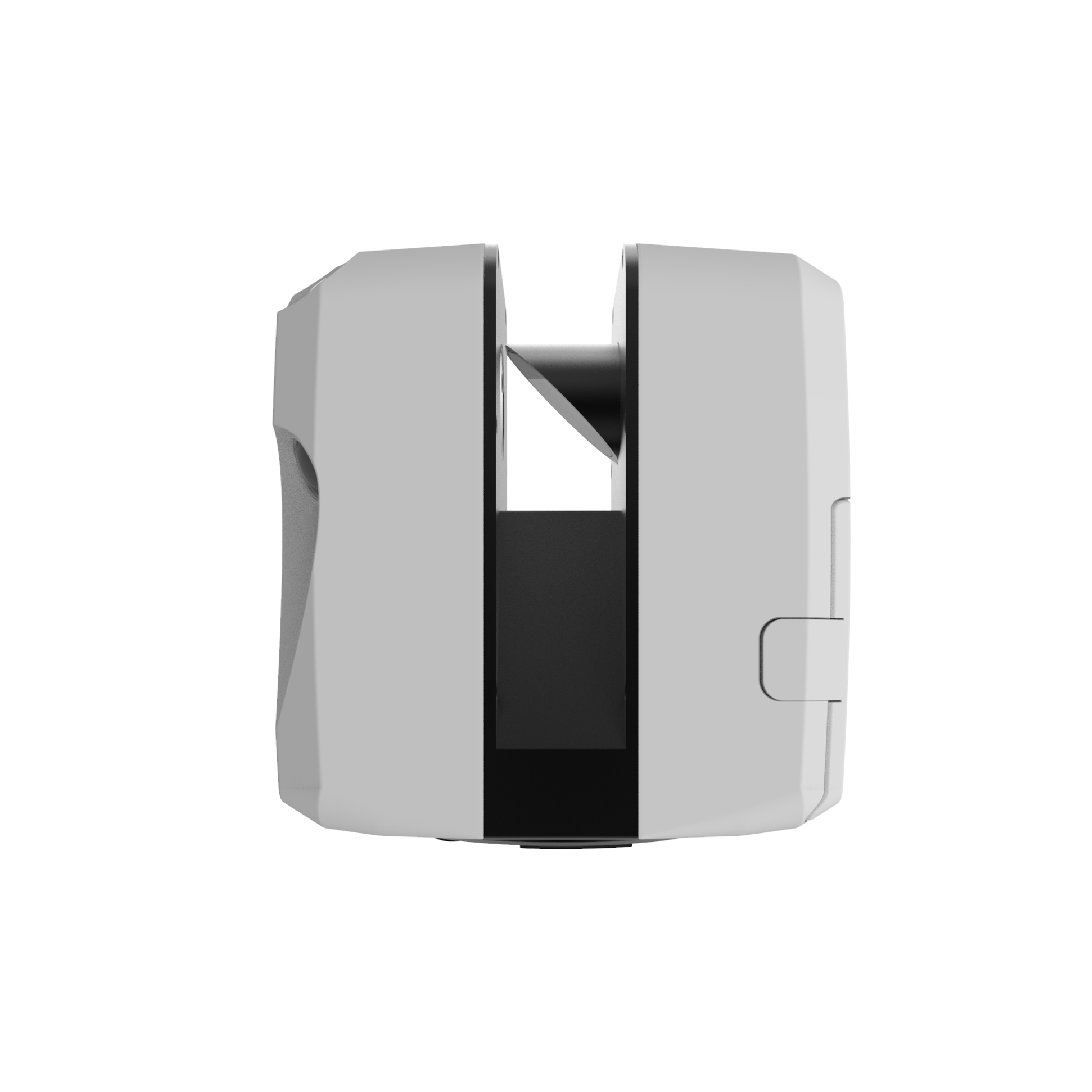

UNRE 360 Nano 3D Laser Scanner — Ultra-Compact Scanning Solution for Rapid On-Site Measurement

The UNRE 360 Nano is a compact, lightweight 3D laser scanner purpose-built for fast and efficient indoor measurement. Combining exceptional portability with professional-grade precision, the 360 Nano is the ideal choice for architects, surveyors, construction professionals, and facility managers who require reliable spatial data in a highly portable form factor.

Key Specifications:
- Laser wavelength: 905nm (Class 1, compliant with IEC 60825-1:2014, eye-safe)
- Actual measurement scanning range: 0.5m to 45m
- Field of view: Horizontal 360°, Vertical 305°
- Range measurement accuracy: 4mm @ 10m / 7mm @ 20m
- Onboard data storage: 256GB
- Data interface: USB 3.0
- Operating temperature: 0°C to 40°C
- Single battery operation time: 1.5 hours
- Dimensions: ≤152×145×90mm (W×H×D)
- Weight: ≤1.5kg (battery not included)

The 360 Nano seamlessly integrates with the UNRE VORTEX software ecosystem for efficient data processing, point cloud visualization, and export to industry-standard formats including DWG, DXF, and PTS — fully compatible with AutoCAD, Revit, and other mainstream design platforms. Its ultra-compact body and intuitive operation make it the go-to solution for rapid room measurement, quality inspection, and as-built documentation, delivering professional results with minimal setup time and effort.
